Do-It-Yourself
TIP
This section is for build a board your self. If what you want is to buy a board, please go to the /pinguino-boards/buy page.
Pinguino Project is Open Hardware. This means that the user has access to all the necessary technical information that allows him to design and / or build his own Pinguino board.
Even more: The design of Pinguino is so simple that the boards can be built in breadboard, perforated plates, or single-faced Pertinax, at home. And if you have the resources, you can send the Gerber files to suppliers like PCBWay or JLCPCB for a professional finish, at U$D 2-5 for 5 pieces.
How to build a board ?
Follow these simple steps:
- Board design
- Design the board yourself. You can find basic diagrams on the 8-bit supported boards page.
- Or choice one of the following diagrams bellow.
- Board manufacturing
- Make the board yourself.
- Or send the Gerber files to a manufacturer.
- Board firmware
- Burn the Pinguino firmware on the chip.
- Or buy a microcontroller with the firmware already inside.
- Enjoy
8-bit Board designs
Some Pinguino Board designs by the Community...
Pinguino 26J50 Tiny
| Based on: | PIC18F26J50 |
|---|---|
| Author: | Regis Blanchot |
| Web: | Github |
| Designed with: | KiCAD |
Pinguino 45K50
| Based on: | PIC18F45K50 |
|---|---|
| Author: | Regis Blanchot |
| Web: | Github |
| Designed with: | KiCAD |
Pinguino 47J53
| Based on: | PIC18F47J53A |
|---|---|
| Author: | Regis Blanchot |
| Web: | Github |
| Designed with: | KiCAD |
Pinguino 2550 v2
| Based on: | PIC18F2550 |
|---|---|
| Author: | Victor Villarreal |
| Web: | Github |
| Designed with: | KiCAD |

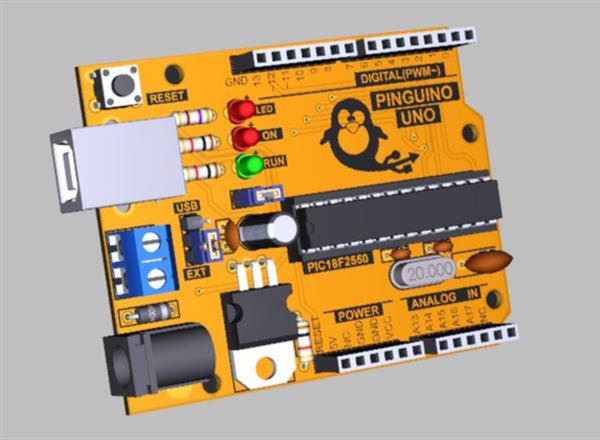

Pinguino Uno
| Based on: | PIC18F2550 |
|---|---|
| Author: | PCBDesigner |
| Web: | PCBWay |
| YouTube: | YouTube |
| Designed with: | Altium Designer |

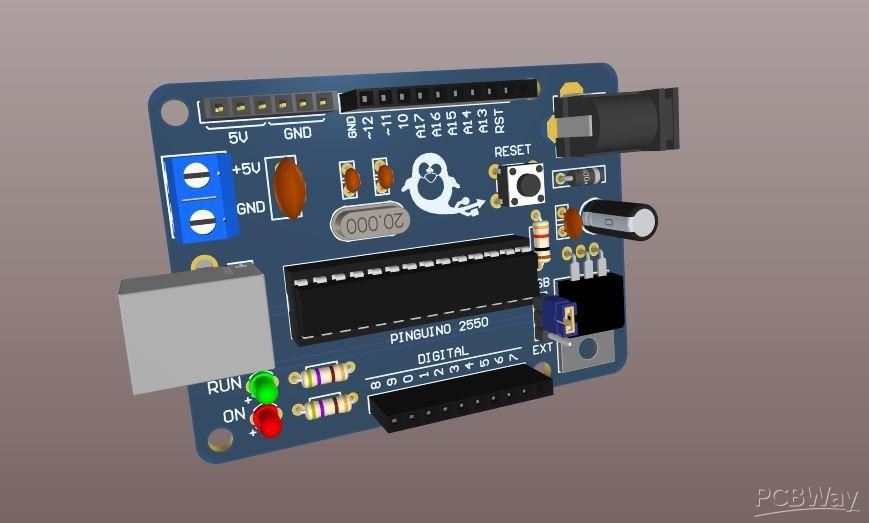

Pinguino Uno 2550
| Based on: | PIC18F2550 |
|---|---|
| Author: | PCBDesigner |
| Web: | PCBWay |
| YouTube: | YouTube |
| Designed with: | Altium Designer |

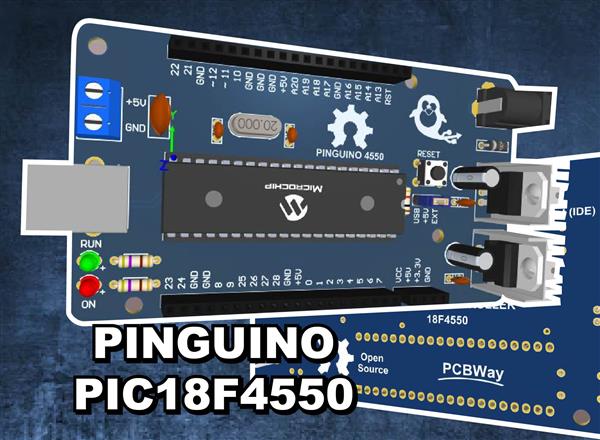

Pinguino 4550
| Based on: | PIC18F4550 |
|---|---|
| Author: | PCBDesigner |
| Web: | PCBWay |
| YouTube: | YouTube |
| Designed with: | Altium Designer |

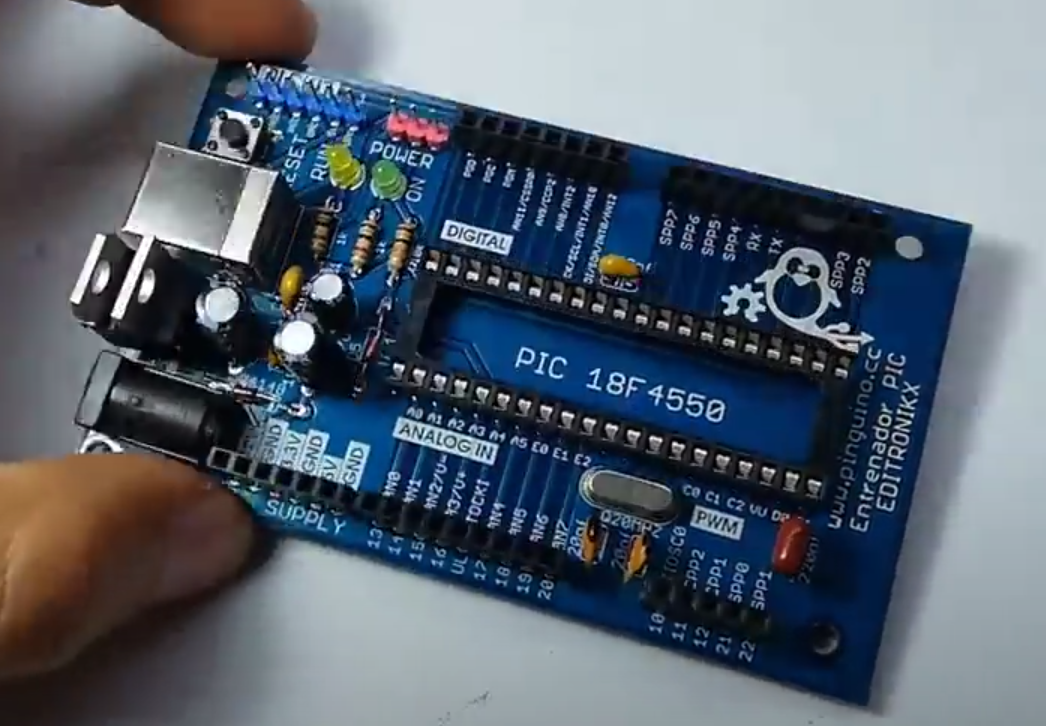

Editronikx 4550
| Based on: | PIC18F4550 |
|---|---|
| Author: | Editronikx |
| Web: | PCBWay |
| YouTube: | YouTube |

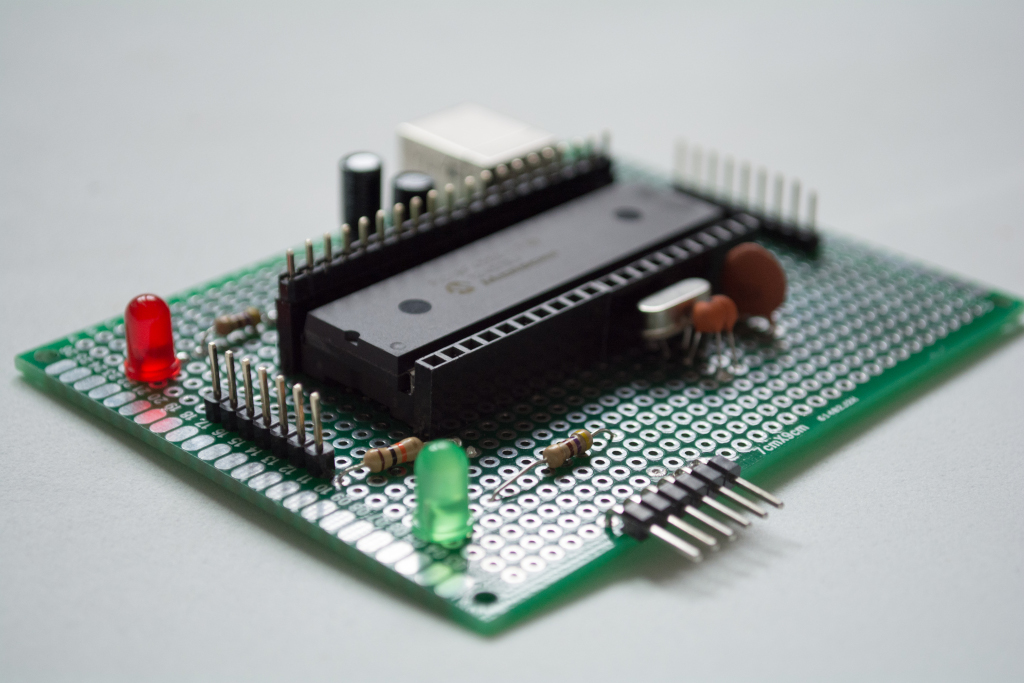

Do-It-Yourself 4550
| Based on: | PIC18F4550 |
|---|---|
| Author: | MicroControllerElectronics Blog |
| Web: | Blog |

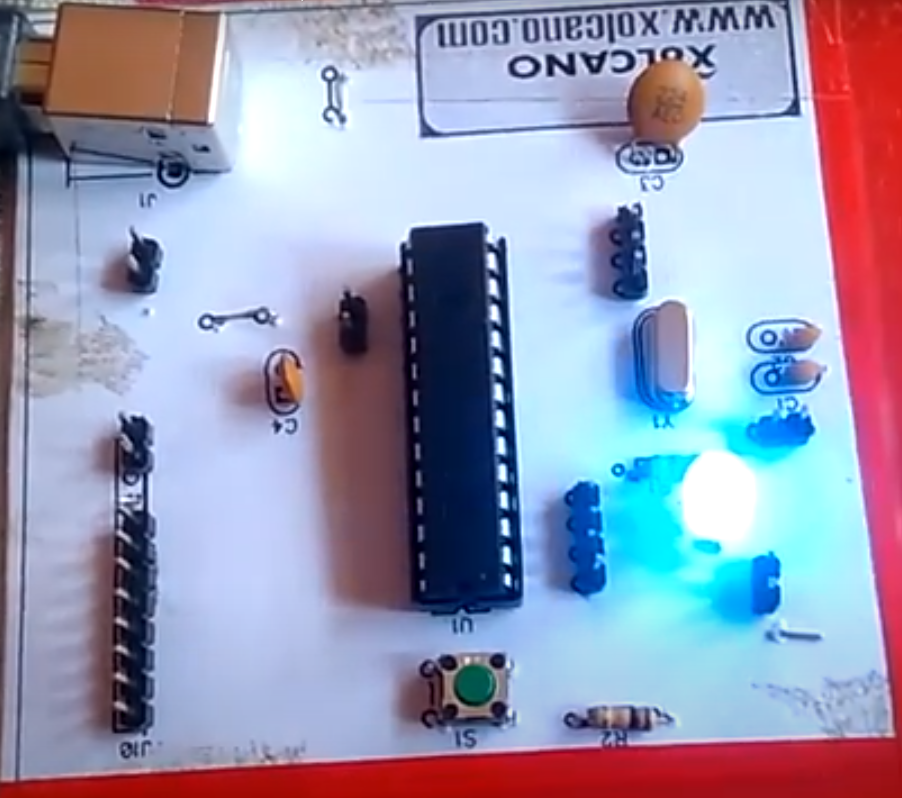

Xolcano Pinguino
| Based on: | PIC18F2550 |
|---|---|
| Author: | Xolcano |
| Web: | Instructables |
32-bit Board designs
Some Pinguino 32-bits Board designs by the Community...
Pinguino 32MX250
| Based on: | PIC32MX250 |
|---|---|
| Author: | Regis Blanchot |
| Web: | Github |
| Designed with: | KiCAD |
